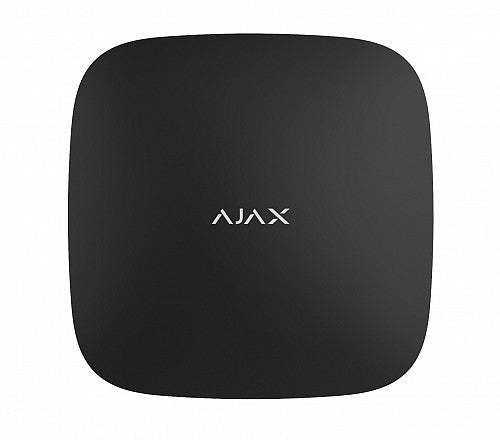

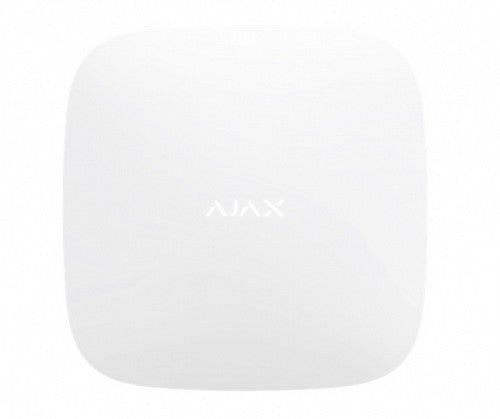

AJAX TCP-IPGSM Alarm Hub2 Plus

Classification : Security system control panel with four in-built channels for external communication and support of detectors with photo cameras
Installation : Indoors
Connected devices : 200
Video surveillance support : 100 cameras and DVRs
Users : 200
Rooms : 50
Security groups : 25
Connected ReX : 5
Scenarios : 64
MotionCam detectors support : +
Apps : iOS 9.1 and later / Android 4.4 and later
Communication channels : 2G (GSM900/DCS1800 (B3/B8)) / 3G (WCDMA 850/900/2100 (B1/B5/B8)) / LTE (FDD B1/B3/B5/B7/B8/B20) / Wi-Fi (802.11 b/g/n)
Ethernet
Alarm signals : Delivery time: 0.15 sec : Notification types: SMS, call, push-notification
Switching between 2G, 3G, LTE : Instant
Switching between the SIM-cards : 4 minutes
CMS connectivity: Contact ID, SIA •Photo verification integrated in Manitou, ABsistemDC(NG) and SBN
Operating system : OS Malevich
Power supply : 110−240 V from mains / Built-in back-up battery: Li-Ion 3 А·h / Up to 15 hours of autonomous work when Ethernet or Wi-Fi channels are disabled / Energy consumption from mains — 10 W
Jeweller radio technology : Communication range with detectors — up to 2,000 m in an open space / Two-way communication between devices / Operating frequencies — 868,0−868,6 MHz / Self-adjusting RF output power — up to 25 mW / Block encryption based on AES algorithm  / Detector polling period — 12−300 s / Frequency hopping
Wings radio technology : Transmission of visual confirmations / Delivery verification of packages
Operating temperature range : From −10°С to +40°С
Anti-sabotage : Forgery prevention / Notifications about jamming / Tamper to detect back lid opening and unmounting from SmartBracket
Remote set up and testing : +
Dimensions : 163 × 163 × 36 mm
Weight : 351 g
