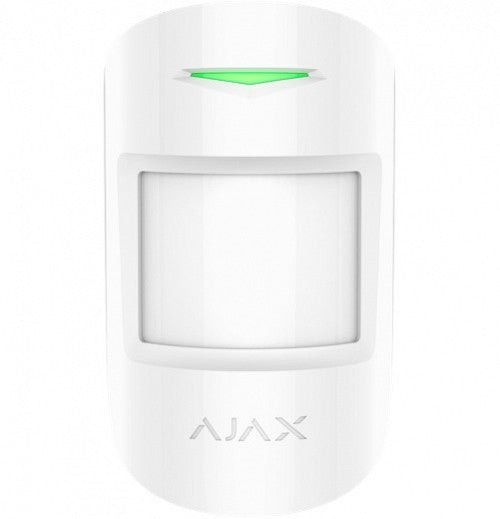

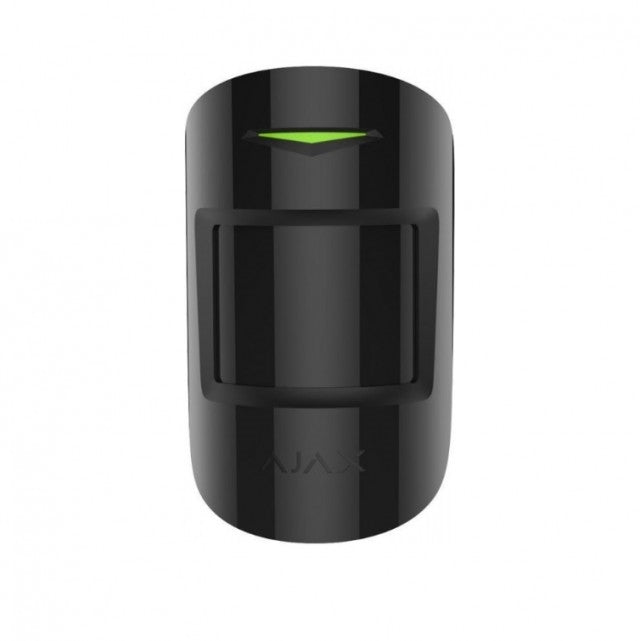

Sensitive element : PIR and microwave sensor Motion detection distance : Up to 12 m Motion detector viewing angles : (H/V) 88,5° / 80° Animal ignoring option : Yes, height up to 50 cm, weight up to 20 kg Tamper protection : Yes Frequency band : 868.0 – 868.6 MHz or 868.7 – 869.2 MHz, Maximum RF output power : Up to 20 mW Modulation of the radio signal : GFSK Radio signal range :Up to 1200 m (any obstacles absent) Power supply :1 battery CR123A, 3 V Battery life :Up to 5 years Operating temperature range : From -10°? to +40°? Operating humidity : Up to 75% Overall dimensions : 110 ? 65 x 50 mm Weight : 96 g Certification : Security Grade 2, Environmental Class I in conformity with the requirements of EN 50131
